New aluminium CNC Machine -PEGASUS 5 axis – ITALMAC

News and events

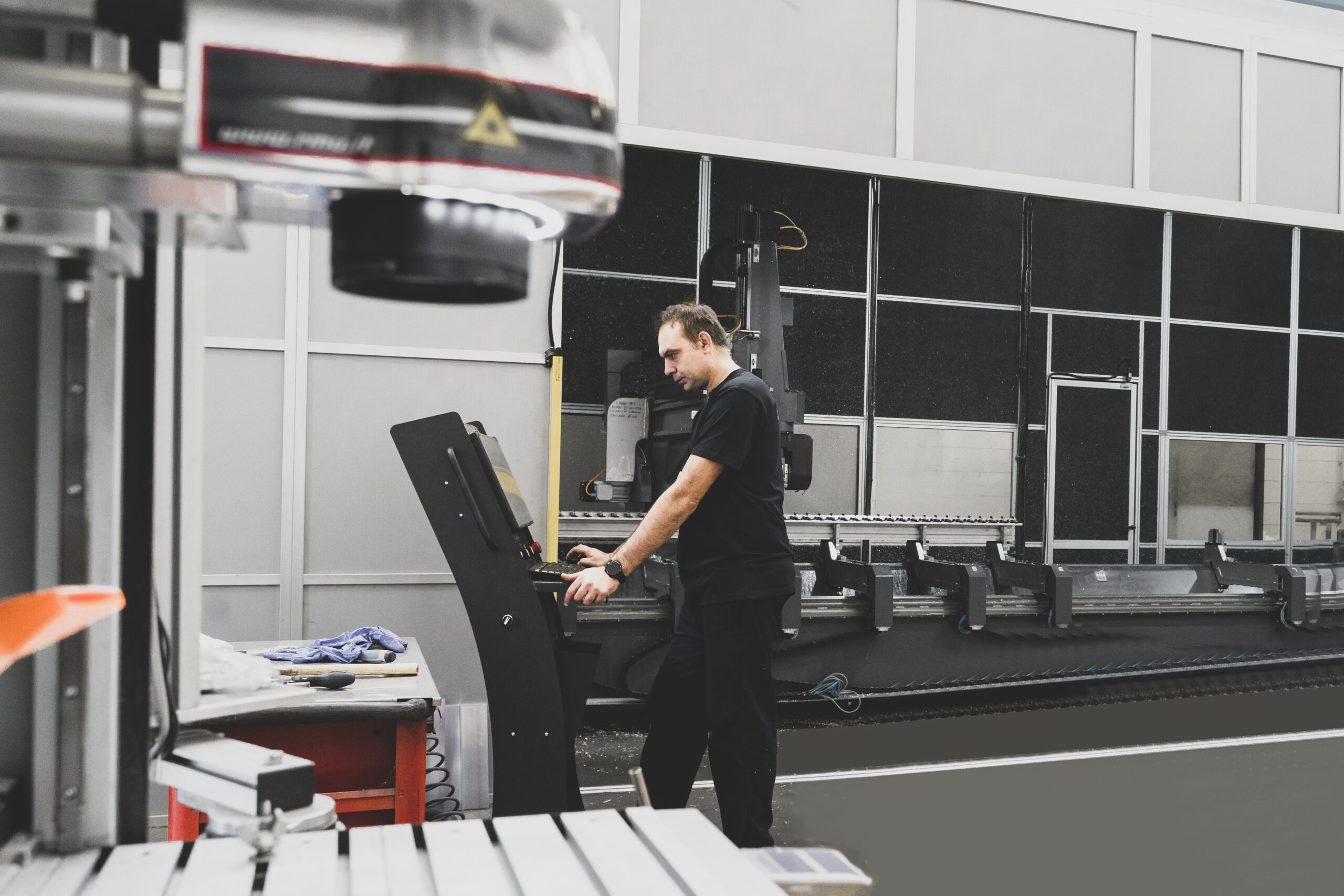

Arrived new CNC machining centre: it is equiped by latest 5 axis CNC working station, PEGASUS 7.000, which is designed for drilling, milling, end milling and thread cutting at any angle from 0 ° to 180 ° (including intermediate). It is designed for milling, drilling, threading and cutting large size aluminium bars, irons and profiles in light alloys & steel.

Technical characteristics:

  • X Axis Longitudinal — 4m – 4470mm, 7m – 7470mm, 9m –  9470mm

  • Y Axis Cross — 1325mm

  • Z Axis Vertical — 600mm

  • A Axis Rotational (around X axis) — from -90° to +90°

  • C Axis Rotational (around Z axis) — from -185° to +185°

  • Axis Positioning Speed — X 100m/min, Y 60m/min, Z 30m/min

  • Axis Acceleration — X 3m/sec², Y 3m/sec², Z 3m/sec²

  • Tool Magazine Capacity — 15 positions

  • Maximum Milling Blade Diameter — 180mm

  • Number of Standard Vices — 4m – 4, 7m – 8, 9m – 8

  • Vices Positioning — Automatic – by hand
